Electrical Panel & Switchgear Labeling Materials
Engineering reference for electrical panel shops, OEM machine builders, and industrial maintenance teams. Compare engraved plate alternatives, high-tack powder-coat adhesives, and NFPA 70E Arc Flash safety materials.
Key Electrical Panel Material Categories

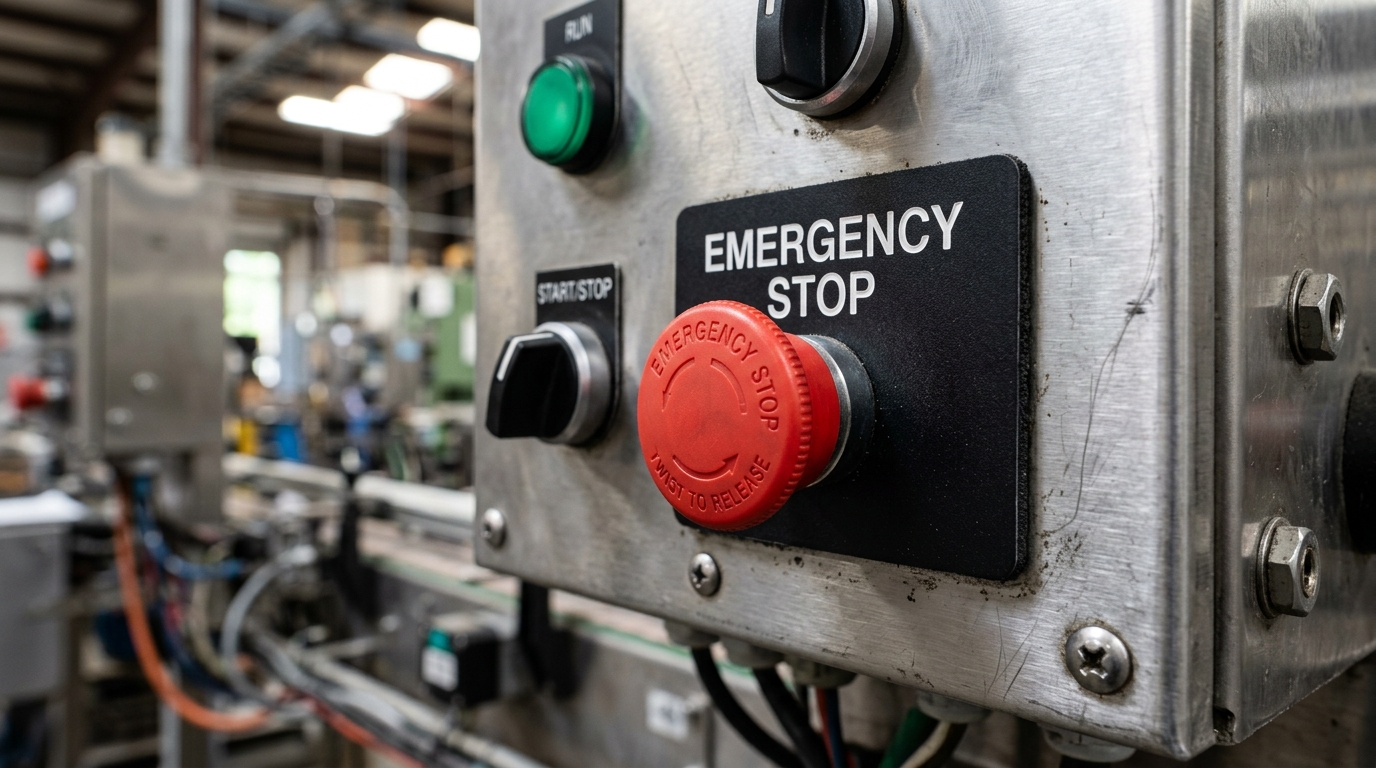

Raised Panel Push-Button & Legend Plates
Foam-Backed Compressible Polyester (0.025" / 0.65mm Thick)The premier on-demand alternative to costly engraved phenolic and plastic legend plates. Features a thick foam core that conforms around surface irregularities, providing an embossed, premium look for 22mm & 30mm push buttons, selector switches, and external cabinet identification.
Ultra-Aggressive High-Tack Polyester
Gloss White Polyester with Permanent Rubber-Based AdhesiveEngineered specifically for low surface energy (LSE) plastics, rough textured powder-coated steel enclosures, and oily surfaces where standard adhesives fail or lift at the edges.
All-Weather Vinyl for Arc Flash & Safety Warning
High-Pliability Gloss Vinyl with Permanent Acrylic AdhesiveHigh-contrast, highly conformable vinyl available in OSHA/ANSI safety colors (Safety Orange, Yellow, Red, Blue, White). Sticks to curved conduit, painted steel, and PVC conduits.
Repositionable Vinyl Cloth for Terminal Blocks
Vinyl-Coated Cloth with Clean-Removable AdhesiveFlexible cloth material designed to be repositioned or removed cleanly without leaving adhesive residue on terminal blocks, wire relays, and temporary commissioning test points.
Panel Shop Compliance & Regulatory Codes
Requires all internal component markings, terminal legends, and external warning plates to use UL 969 recognized labeling materials rated for the cabinet operating temperature.
Requires durable field-applied warning labels detailing nominal system voltage, arc flash boundary, and PPE category on switchboards and industrial control panels.
